Winlet – the fastest, safest and smartest glass lifter on the market
Winlet – the fastest, safest and smartest glass lifter on the market
The Winlet products consists of a series of self-propelled vacuum lifts which uses hydraulic to lift and handle sheet glass, windows and other airtight materials.
Powerful hydraulics and precision to the millimeter
Winlet glass lifts have off-road wheel drive on the front axle and all movement loads are hydraulically actuated.
Unlike other technologies, hydraulics is extremely powerful and fast and at the same time also robust enough to withstand the conditions on site.
The exceptional controlling of the hydraulics makes sure that all movements are executed with millimeter precision. This is vital for accurate mounting of glass panes and windows. To make installation work even faster, all Winlet glass lifts are designed with 100% linear movement of the front – both horizontally and vertically.
Compact and strong
Winlet glass lifts are build to withstand the challenges that may arise on a building site. It is the most compact glass lift on the market meaning they can be used in confined spaces where most other glass lifts can’t.
Not just a glass lift
By changing the suction cups the Winlet can be used to lift a wide range of other airtight material besides windows and glass:
- Granite
- Concrete
- Plasterboards
- Steel plates
- Wooden plates
- Tiles
- Fire doors
Avoid manual lifting with the Winlet
All Winlet glass lifts are, of course, operated with vacuum function from the cable remote control, thus the vacuum can be actuated directly at the mounting location, making it possible to install sheet glass etc. with just one man and a Winlet glass lift.
The use of the Winlet means that manual workers avoid heavy and awkward lifting; a big plus for the working environment as it spares workers from the back strain many will experience.
What does a Winlet cost?
Because we offer many different models and accessories, the price will depend on which specific products you are interested in.
We offer a Winlet from: € 24.600,-
Are you interested in a demonstration of what the Winlet can do? Make an appointment with us today.
FIND THE RIGHT GLASS LIFT FOR YOUR PROJECT:
WINLET 375
Winlet 375
- Max lifting capacity: 375 kg.
- Max lifting height: 3,078 mm (horisontal suction cups).
- Width 690 mm – the most compact Winlet glazing robot.
- Partially hydraulic.

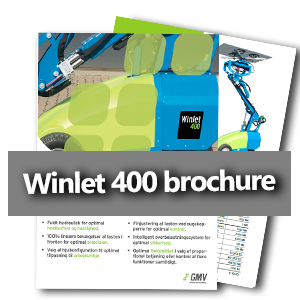

WINLET 400
Winlet 400
- 4 configuration packages:
Wheels, Lifting arm, Front and controls = 10 models. - Max lifting capacity: From 315 kg to 500 kg.
- Max lifting height: From 2,573 mm to 3,190 mm.
WINLET 575
Winlet 575
- Max lifting capacity: 575 kg.
- Max lifting height: 3,900 mm (horizontal suction cups).
- Fully hydraulic.
WINLET 600
Winlet 600
- Max lifting capacity: 600 kg.
- Max lifting height: 3,300 mm (center of lifting yoke).
- Partially hydraulic.
WINLET 785
Winlet 785
- Max lifting capacity: 785 kg.
- Max lifting height: 4,470 mm (horizontal suction cups).
- Fully hydraulic.
WINLET 1000
Winlet 1000
- Max lifting capacity: 1,000 kg.
- Max lifting height: 4,650 mm (horizontal suction cups).
- Power steering and gyro function.
- Fully hydraulic.
WINLET 1000 CRAWLER
Winlet 1000 Crawler
- Max lifting capacity: 1,000 kg.
- Max lifting height: 4,500 mm.
- Belt-driven with automatic self-levelling.
- Fully hydraulic.
WINLET 1000 CRAWLER ER
Winlet 1000 Crawler ER
- Max lifting capacity: 1,000 kg.
- Max lifting height: 6,050 mm.
- Belt-driven with automatic self-levelling.
- Fully hydraulic.
WINLET 575TH
Winlet 575TH
- Max lifting capacity: 575 kg.
- For use on all types of telehandlers – via Quick Shift.
- Self-contained hydraulic system, battery and radio control.
- Fully hydraulic.
WINLET 350TH
Winlet 350TH
- Max lifting capacity: 350 kg.
- For use on all types of telehandlers – Quick Shift or on forks.
- Self-contained hydraulic system, battery and cable control (option: radio control).
- Partially hydraulic.
WINLET LASIUS 1,5T
Winlet Lasius 1,5t
- Battery-powered “Pick & Carry” mobile mini crane.
- Max lifting capacity: 1,500 kg.
- Max lifting height: 4,240 mm.
- Option: Hydraulic wire winch.
- Power steering.
WINLET LASIUS 1t
Winlet Lasius 1t
- Battery-powered “Pick & Carry” mobile mini crane.
- Max lifting capacity: 1,000 kg.
- Max lifting height: 4,000 mm.
- Option: Hydraulic wire winch.
WINLET LASIUS 550
Winlet Lasius 550
- Battery-powered “Pick & Carry” mobile mini crane.
- Max lifting capacity: 550 kg.
- Max lifting height: 3,000 mm.
- The most compact Winlet Lasius.
- Option: Hydraulic wire winch.
