Winlet 400TL DHB HV – off-road with extra reach

Max lifting capacity 345 kg
Max side load 200 kg

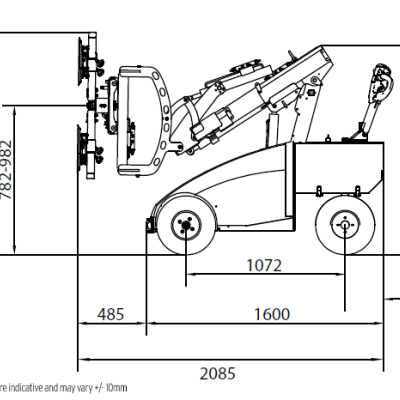

Max lifting height 3.635 mm
– with horisontal load
Max lifting height 3.190 mm
– with vertical load

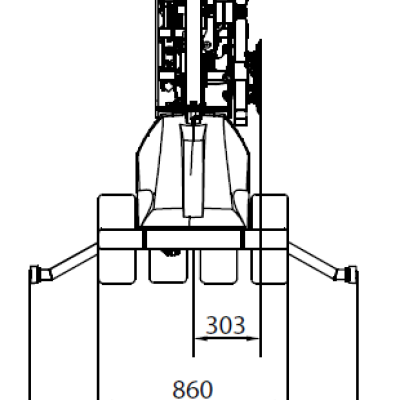

Width 860 mm
Manual sideshift 100 mm
Hydraulic fine lift 200 mm
Rotation of front Endless
Operating hours 12h
Charging time 8-10h

Do you need an extra stabile glazing robot with off-road capabilities and extra reach? Then you should take a closer look at this glazing robot.

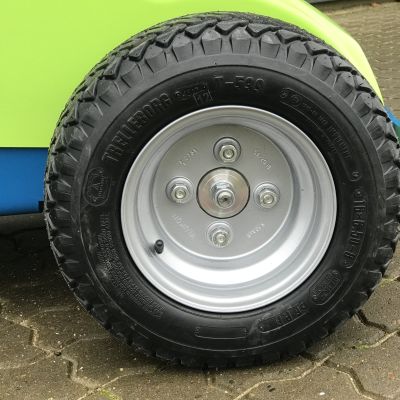

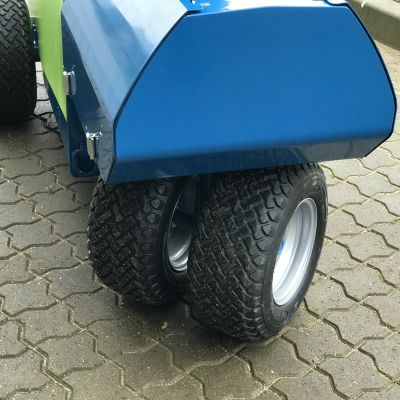

This Winlet 400TL is equipped with extra wide steering and traction wheels making it extremely stable and ideal for outdoor installations.

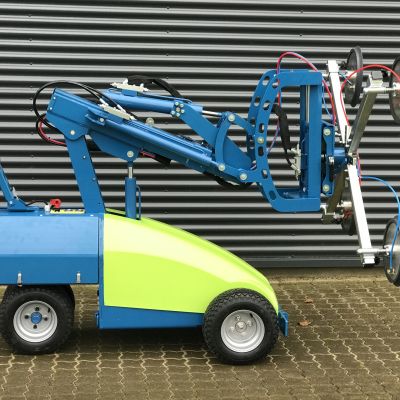

It has a double hydraulic boom (2 x 500 mm) and a front with hydraulic fine lift up/down and manual sideshift for optimal precision during installations.

See the entire Winlet 400 series

See the full Winlet product range in our main catalogue

See the Winlet list of accessories

Choose between two types of control systems

For this Winlet you can choose between two types of control systems. One is newly developed – the MAC (Multi Axis Control) control system. As the name implies, you can control more hydraulic functions at a time. Three preset speedlevels (10% – 50% – 100%) ensures that you have the possibility to take advantage of the higher speedlevels which only is available with 100% hydraulic machines.

Winlet 400 is of course still available with the familiar Winlet controls where you choose which hydraulic cylinder you wish to move and then control the speed 100% proportional with milimeter precision.
