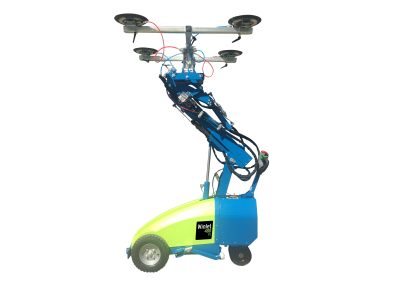

Winlet 400CL SHB HS – ultra compact with light front

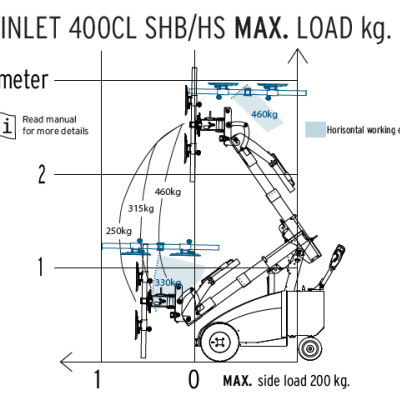

  • Max lifting capacity 400 kg
  • Max side load 200 kg
  • Max lifting height 2.989 mm
    – with horisontal load
  • Max lifting height 2.704 mm
    – with vertical load

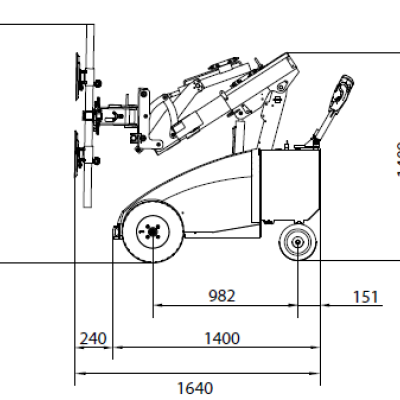

  • Width only 690 mm
  • Manual sideshift 100 mm
  • Hydraulic fine lift 200 mm
  • Rotation of front 2 x 180°
  • Operating hours 12h
  • Charging time 8-10h

With this glazing robot you will have an ultra compact machine with a light front and an impressive lifting capacity of 460 kg!

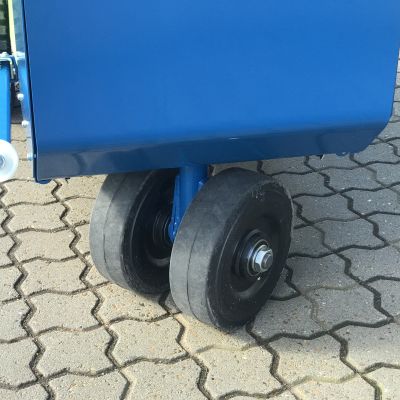

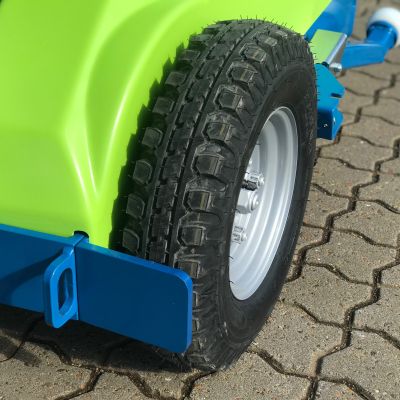

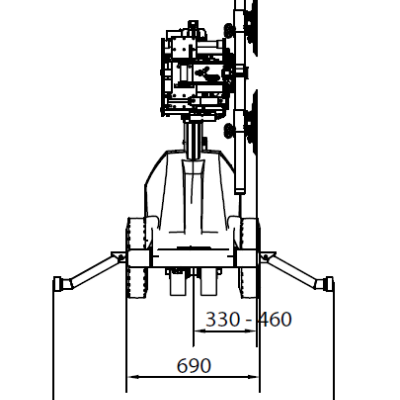

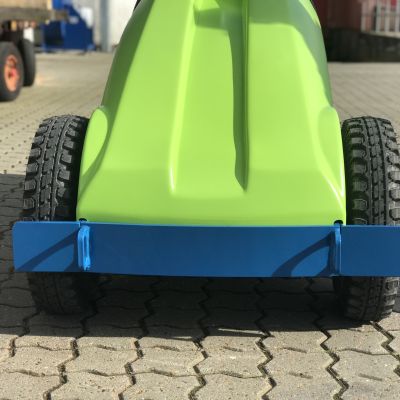

Winlet 400CL is equipped with narrow steering and traction wheels and has a width of only 69 cm when the load is on the side of the machine. This enables it to get through narrow openings and ensuring maximum maneuverability where space is limited.

It has a single hydraulic boom for extra reach, a front with hydraulic sideshift for optimal precision during installations.


Choose between two types of control systems

For this Winlet you can choose between two types of control systems. One is newly developed – the MAC (Multi Axis Control) control system. As the name implies, you can control more hydraulic functions at a time. Three preset speedlevels (10% – 50% – 100%) ensures that you have the possibility to take advantage of the higher speedlevels which only is available with 100% hydraulic machines.

Winlet 400 is of course still available with the familiar Winlet controls where you choose which hydraulic cylinder you wish to move and then control the speed 100% proportional with milimeter precision.

Winlet 400 kan naturligvis stadig leveres med den kendte Winlet betjening, hvor man vælger den enkelte cylinder man ønsker at bevæge og kontrollerer derefter hastigheden 100% proportionelt med millimeter præcision.

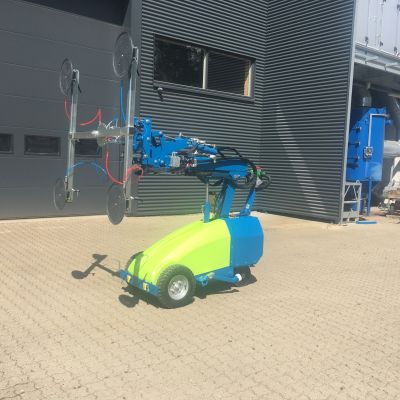

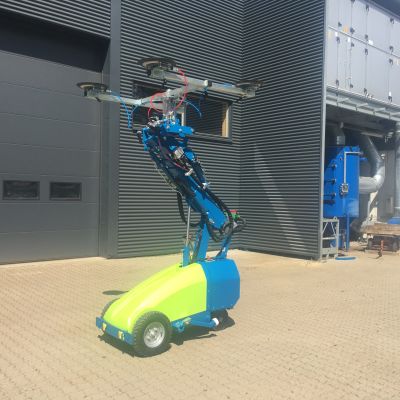

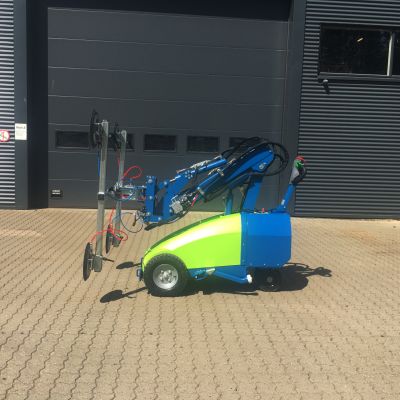

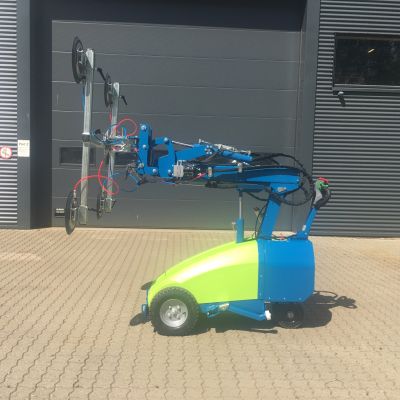

Pictures and video of Winlet 400CL SHB HS
